溢流阀HTRV27M-01A

首页产品中心

名称：

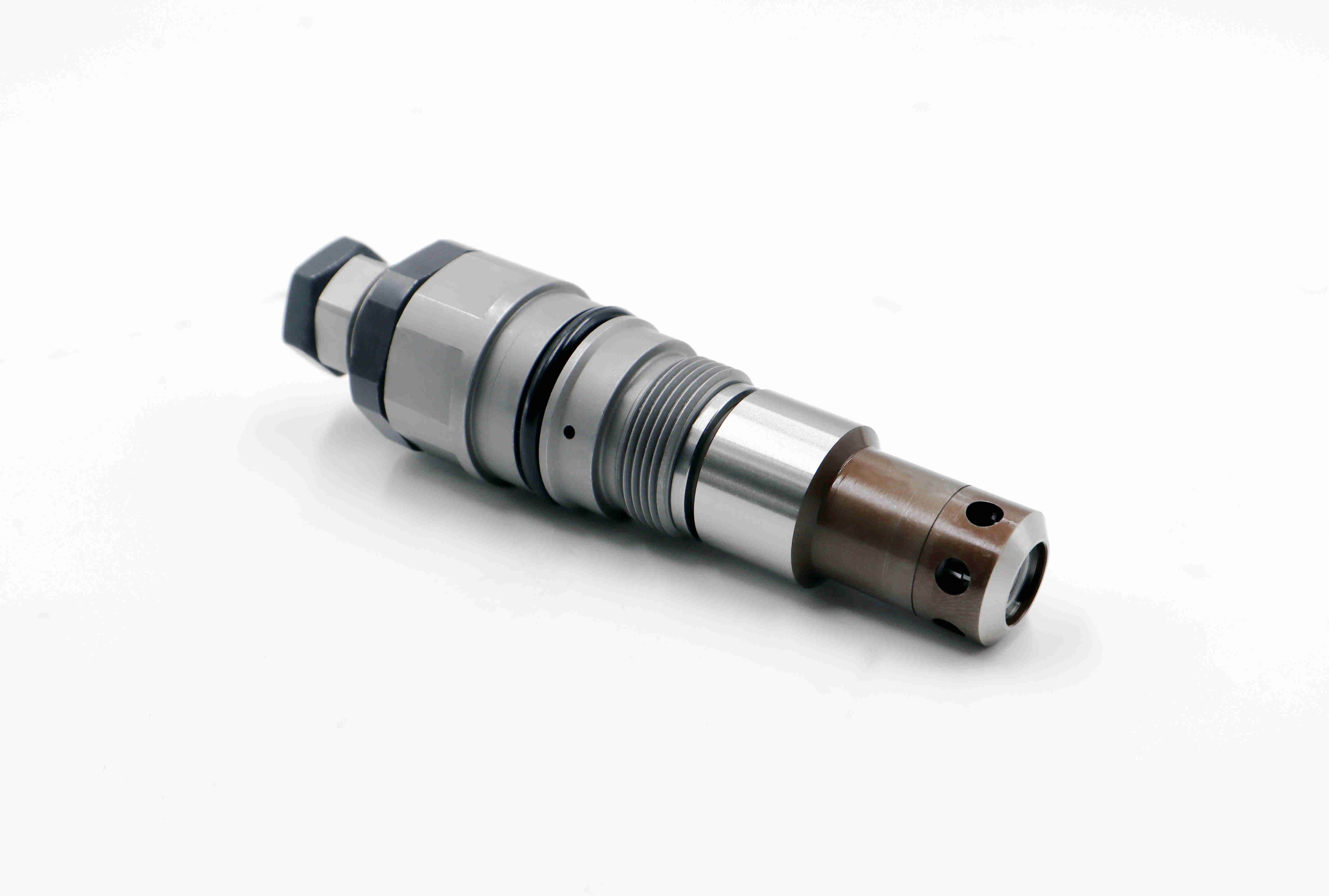

溢流阀

型号：

HTRV27M-01A

原理图：

流量：

160L/min

压力：

420bar

产品描述：

螺纹插装式，二级先导型，座阀式溢流阀，作为压力限制装置用于要求快速响应、低滞后的液压回路. Threaded cartridge type, two-stage pilot type, seat-valve type relief valves, used as pressure limiting devices for hydraulic circuits requiring fast response and low hysteresis.

资料下载联系我们

产品优势

HTRV27M-01A 型，常态下从① 流向② 封闭，直到① 处受到足够的液压力使先导阀开启，再推动主阀芯移动，使油液从① 流向② ，当③ 口有油压，将使设定压力上升。

HTRV27M-01A is Normally, the flow direction from ① to ② is closed until enough hydraulic pressure is received at ① to open the pilot valve, and then the main valve core is pushed to move to make the oil flow from ① to ②. When there is oil pressure at ③,the set pressure will rise.

详细参数

工作压力Pressure rating	420bar
设置压力 Setting pressure	查看订货选型表
最大流量 Maximum flow	180L/min
最大内泄漏量 Maximum internal leakage	30 cc /min @80%设定压力 30cc /min @ 80% nominal set point
外露零件表面处理要求External component treatment	Zn/Fe - standard Zn/Ni
安装方向 Orientation	无限制 No restrictions
重量 Weight	0.486kg
适用油温范围 Oil Temperature Range	-30°C to 110°C
适用工作介质 Fluids	矿物油或具有润滑性的合成油液 Mineral - based orsynthetics with lubricating properties
工作介质粘度范围Viscosities	7,4 to 420 cSt
测试液压油型号 Oil testing condition	ISO VG 46 cSt
过滤要求 Filtration	20/18/15 ISO 4406 (maximum filtration admitted)
安装力矩 Installation torque	69-78 Nm

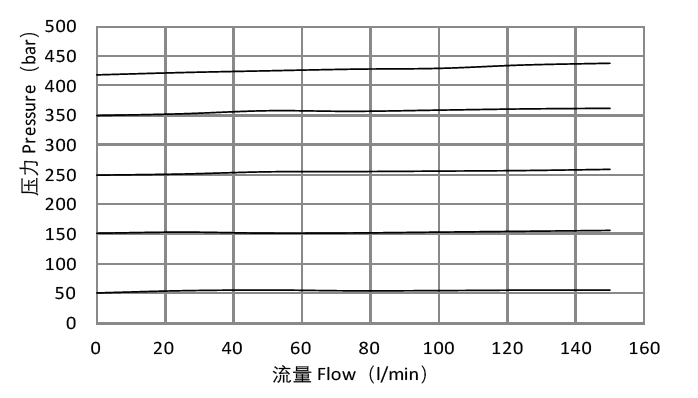

特性曲线
